MDT Send It LRA 90 Degree Mount for Spuhr Mount

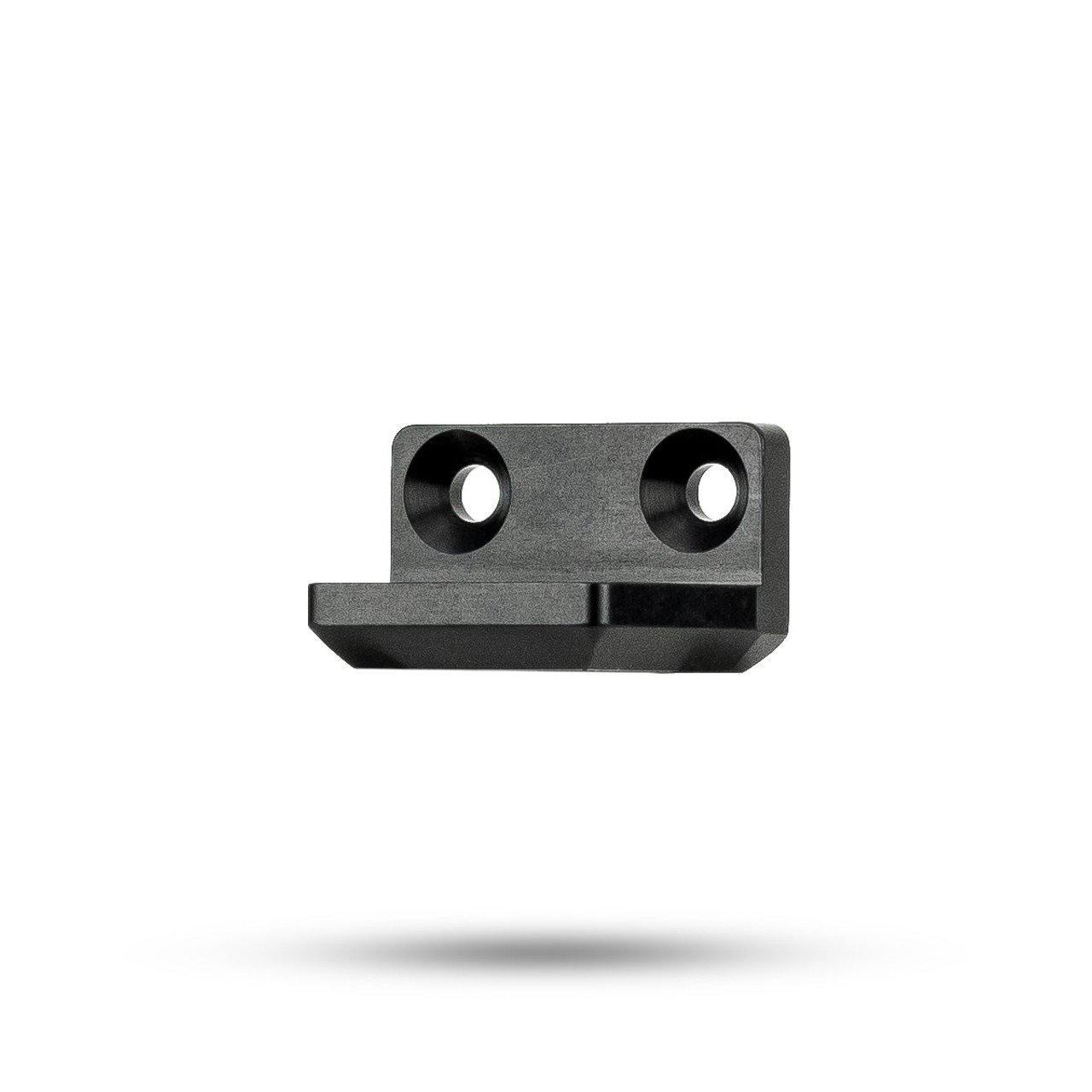

Send iT MV3 Level sold separately. LRA S90 Bracket Allows the Send iT MV3 to be mounted directly to Spuhr’s SP, SA, SS, and ST models in the vertical Position.
Attention! Some mounts may require Spuhr A-0001: Spacer 4mm. Contact your Spuhr dealer for specific applications.
Included;
-LRA S90 Bracket
-#8-32 screw (1)
-4mm x 10mm screws (2)
**Warning** Screw lengths MUST be checked PRIOR to attaching the mounts. In some applications the screw can “bottom out” against the scope tube or damage other components if the screw length is excessive or the wrong size/thread pitch is used. YOU are RESPONSIBLE to check the length and size of screws and verify interferences before final assembly. LRA is not liable for damage to our products or the products they are being mounted or attached to.
Step 1- Attach the LRA S90 to the Spuhr mount using the (2) supplied 4mm x 10mm flat head screws using either an IP20 or T20 Torx Plus or Torx drive. Torque both screws to 20-25 in-lbs.
Step 2- attach the Send iT MV3 to the LRA S90 bracket. Follow the instructions included with the Send iT MV3 for removal of the Picatinny mount (link below). Carefully fit the Send iT into the pocket of the LRA S90 bracket by hand and confirm it’s sitting flat and fully seated BEFORE installing the screw. Install and torque the (1) supplied # 8-32 Flat head screw to 30-34 in-lbs using a 3/32 Allen drive.
